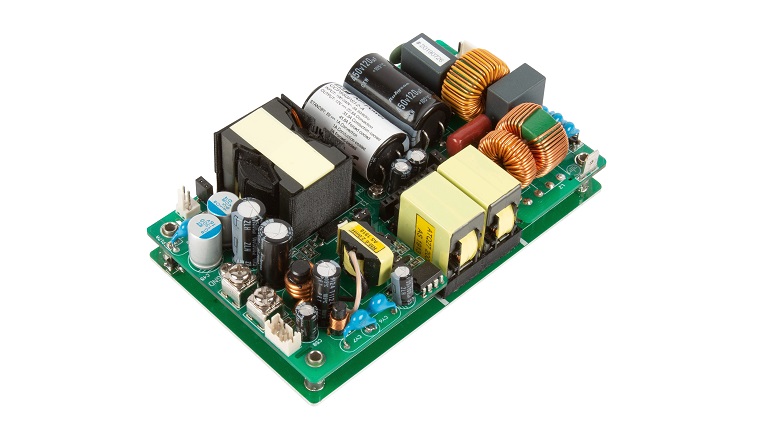

XP Power CCP550 series
Medical & ITE approved 550W power supplies with convection, conduction and forced cooled rating
The CCP550 series are designed to operate in convection cooled, conduction cooled, and fan cooled applications with power ratings from 300 to 550W.
With Class B conducted emissions, worldwide industrial & medical safety approvals, 2 x MOPP isolation and low leakage currents, the CCP550 is designed for easy integration into a wide range of industrial and BF rated medical applications.
Features
- 550W fan cooled, 400W conduction cooled, 300W convection cooled
- Single outputs 12, 15, 18, 24, 36 & 48VDC
- Universal input: 80 to 264VAC
- 127.0 x 76.2mm footprint, 37.5mm profile
- High efficiency, up to 92%
- Low leakage currents: <400µA earth leakage, <90µA patient leakage
- Medical (BF) & ITE safety approvals
- Standard fan supply on all models (excluding 15V)
- Optional 5VDC standby & remote on/off
- 3 year warranty
Applications
- Medical ventilators
- Patient monitors
- Imaging systems
- Laboratory equipment
- Test equipment
- Instrumentation
- Process control
- Industrial printing & UV curing
- Factory automation
- Audio / video equipment
- Internet-of-Things (IoT) devices
