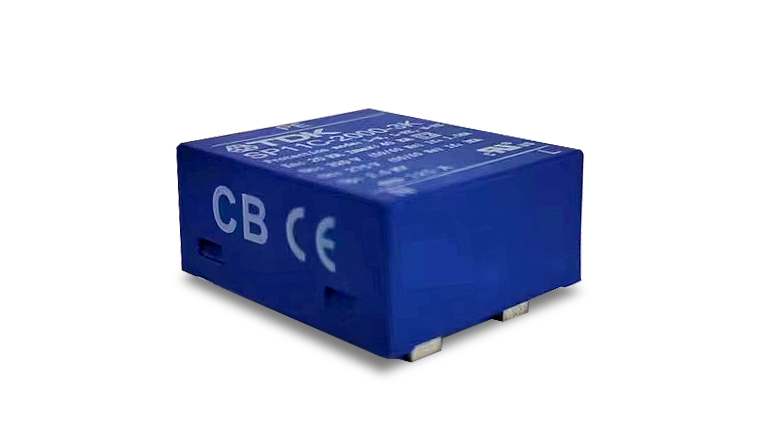

Surge protector for AC power supplies
TDK's SP11 series can meet customer's large surge current and the samller size.This product is based on more than 80 years of experience with gas tube technology.This product is suitable for customers who require onboard lightning protection devices.
The SP11 series products use stacked gas discharge tube solution, which solves the problem of flow current in the gas discharge tube and has low residual pressure. This product can withstand surge of 8/20us 40KA and 10/350us 8KA. At Uc 320V, the module can self interrupt a follow current 1.5KA.
Features
- High self-extinguishing capability
- High follow current limitation capability
- Stable performance over life
- High insulation resistance
- RoHS-compatible
Applications
- AC power line L-N, N-PE, L-PE
- Class II – surge protection
