PIC32CX-BZ2 Multi-Protocol SoC

Microchip's portfolio of SoCs offer robust performance and dynamic support to make wireless design accessible to everyone.

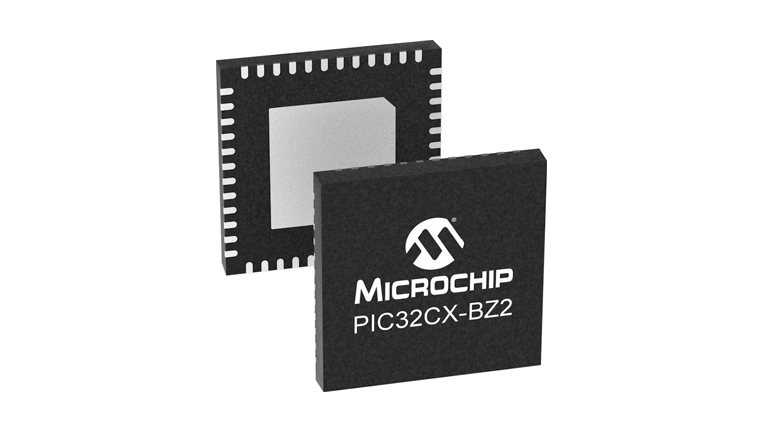

Space-saving SoCs offer the most freedom in terms of software and hardware design. Microchip's PIC32CX-BZ2 SoC is a low-cost multi-protocol MCU in a 48-pin 7 × 7 mm QFN package with 0.5 mm pitch.

Features

• MCU
  • 64 MHz Arm® Cortex® M4F processor
  • 1 MB Flash with Error Correction Code (ECC)
  • 32 KB nonvolatile read Flash
  • 128 KB multi-port programmable Quality of Service (QoS) SRAM
  • 29 GPIOs
  • Internal and external clock options
• System Peripherals
  • 16-channel Direct Memory Access Controller (DMAC)
  • 12-bit, 8-channel, 2 Msps Analog-to-Digital Converter (ADC)
  • 32-channel Event System
  • 32-bit Real-Time Counter (RTC) with clock/calendar function
  • Quad SPI with eXecute-In-Place (XIP) support
  • Serial communication: USART, I2C, SPI, RS485, LIN
• Security
  • AES engine with 128, 192 and 256-bit cryptographic key
  • AES with 256-bit key length and up to 2 MB/s data rate
  • True Random Number Generator (TRNG)
  • Public key cryptography controller
  • Integrity Check Module (ICM) based on Secure Hash Algorithm (SHA1, SHA224, SHA256)
• Small Signal Gain: 22 dB (28 GHz)
• Return Loss: 15 dB
• Drain Bias 24V, IDQ = 112 mA – 224 mA
• Technology: GaN on SiC
• Lead-free and RoHS compliant
• Dimensions: 3.025 mm × 3.405 mm × 0.10 mm

Applications

• Multi-protocol gateways
• Smart appliances
• HVAC sensors and controls
• Smart doors and locks
• Motor control
• Intelligent lighting
