ULTRA MICRO INTERCONNECTS

From documentation to testing and monitoring, POC （POINT OF CARE & MONITORING）equipment streamlines the process for medical products and services to be administered to the patient without delays. Samtec offers high-speed ultra micro solutions with high-reliability ideal for the portability and accuracy of POC devices to deliver data in real time.

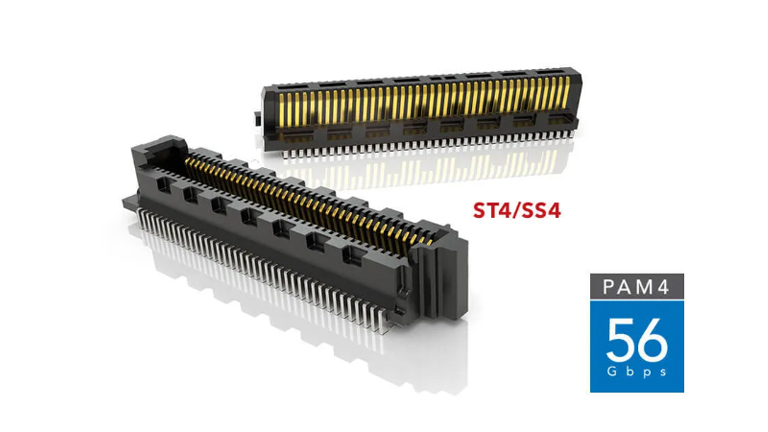

Samtec's ultra micro interconnects feature fine pitches, slim body designs and extremely low profiles for incredible design flexibility with high-speed performance up to 56 Gbps PAM4. Self-mating Razor Beam™ interconnects reduce inventory costs, and can be interchanged for a variety of stack heights from 5 to 12 mm with optional EMI shielding. Razor Beam™ contacts feature undercut retention notches with an audible click when mated; this increases mating/unmating forces by 4 to 6 times compared to typical micro pitch connectors.

Micro Blade & Beam systems feature incredibly fine pitches and ultra low stack heights down to 2 mm. For a power/signal application, these interconnects are compatible with mPOWER® ultra micro power system. Jack screw standoffs are available for unmating assistance and protection from component damage.

Features

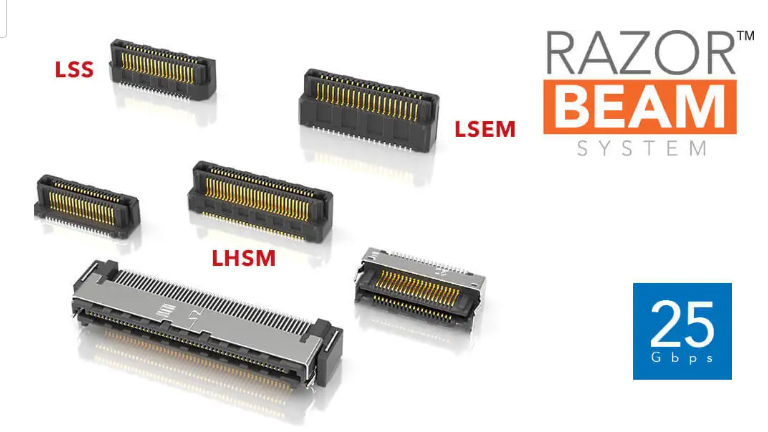

RAZOR BEAM™ FINE PITCH SELF MATING CONNECTORS
- 0.50 mm, 0.635 mm or 0.80 mm pitch systems.
- Razor Beam™ contacts for high-speed and fine-pitch systems.
- Mating and unmating forces approximately 4-6x greater than typical micro pitch connectors.
- Shielded option for EMI protection.
- Self-mating connectors reduce inventory costs and can be - interchanged for varying stack heights.
- 10 stack height options from 5 mm to 12 mm.
- Up to 100 contacts.
- Parallel, perpendicular and coplanar systems.
- Audible click when mated.
- Lubricated option available.
MICRO BLADE & BEAM ULTRA FINE PITCH CONNECTORS
- Ultra fine pitch – 0.40 mm and 0.50 mm.
- Ultra low stack down to 2.00 mm.
- Slim body design for increased board space savings.
