VEMD8081
Photodiode

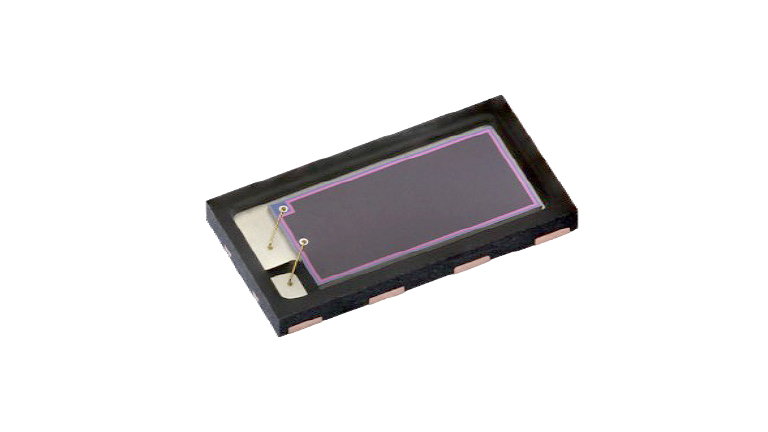

VEMD8081 is a high speed PIN photodiode with enhanced sensitivity for visible light. It is a low profile surface-mount device (SMD), including the chip with a 5.4 mm2 sensitive area, for detecting visible and near infrared radiation.
Features
- Package type: surface-mount
- Package form: top view
- Dimensions (L x W x H in mm): 4.8 x 2.5 x 0.48
- Radiant sensitive area (in mm2): 5.4
- 0.48 mm low profile package
- Enhanced sensitivity for visible light
- Suitable for visible and near infrared radiation
- Angle of half sensitivity: ϕ = ± 65°
- Floor life: 168 h, MSL 3, according to J-STD-020
- Material categorization: for definitions of compliance. please see www.vishay.com/doc?99912
Applications
- High speed photo detector
- Wearables
